OEM 1080P 30FPS Intgrated Endoscope Lub Koob Yees Duab Module
Guangzhou Sincere Information Technology Ltd. yog ib qho ntawm cov kws tshaj lij oem 1080p 30fps intgrated endoscope koob yees duab module manufacturers thiab lwm tus neeg nyob hauv Suav teb. Txais tos rau cov lag luam wholesale luv nqi khoom muag ntawm no los ntawm peb lub hoobkas. Customized xaj yog txais tos.

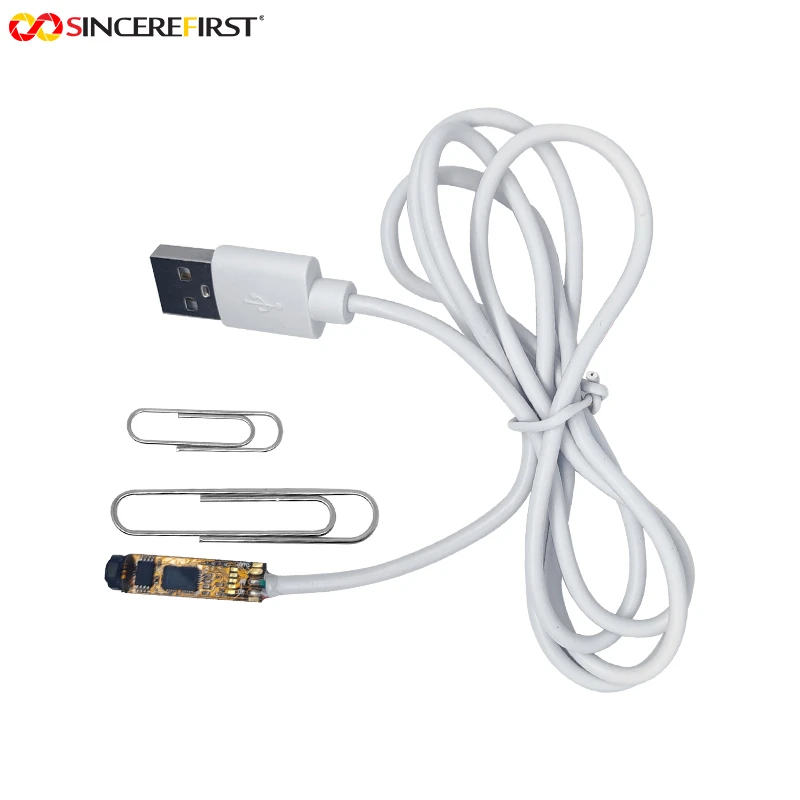

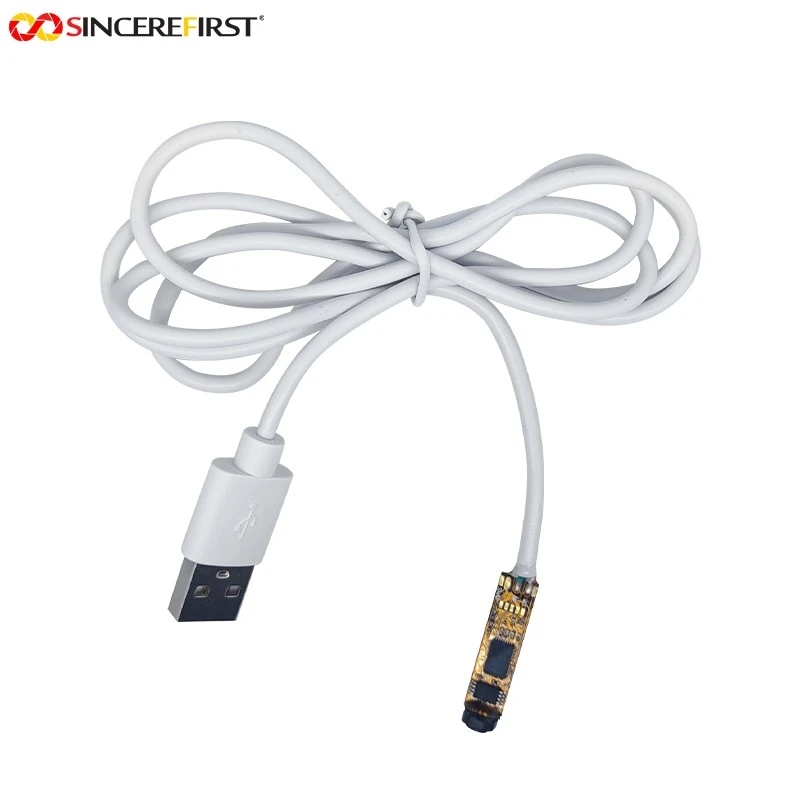

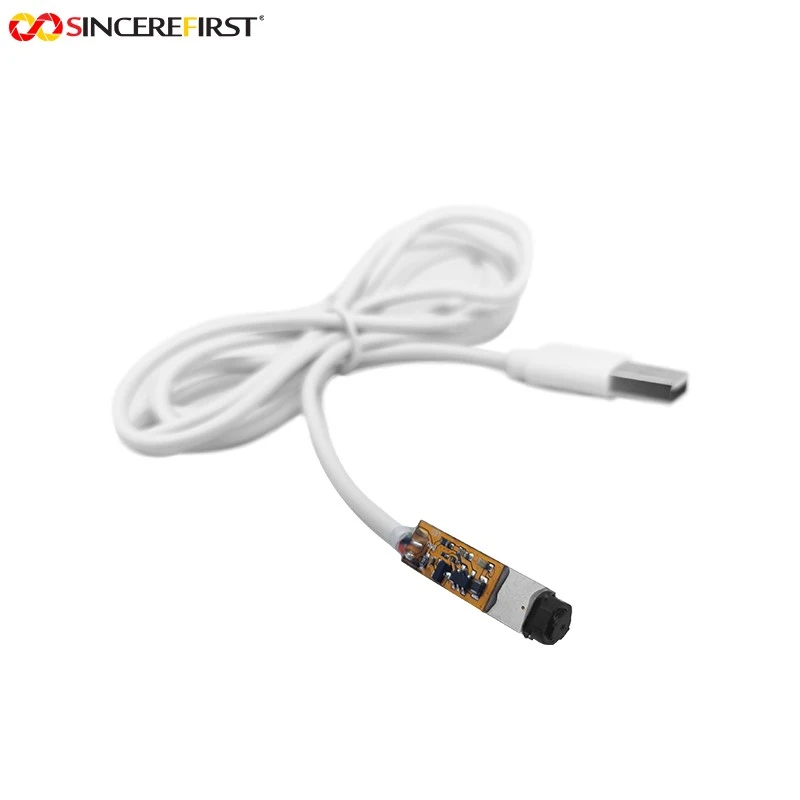

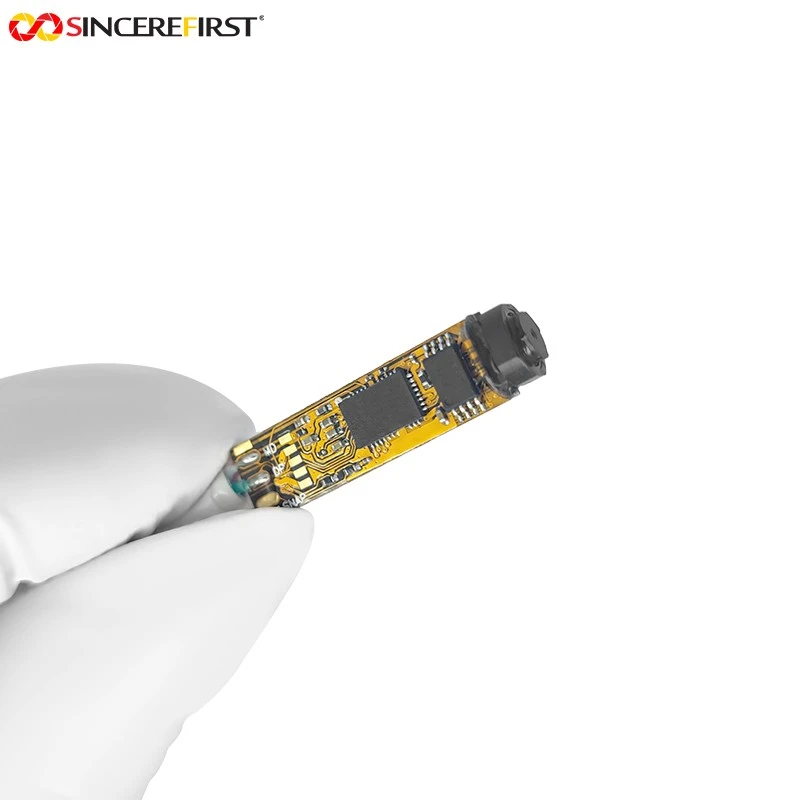

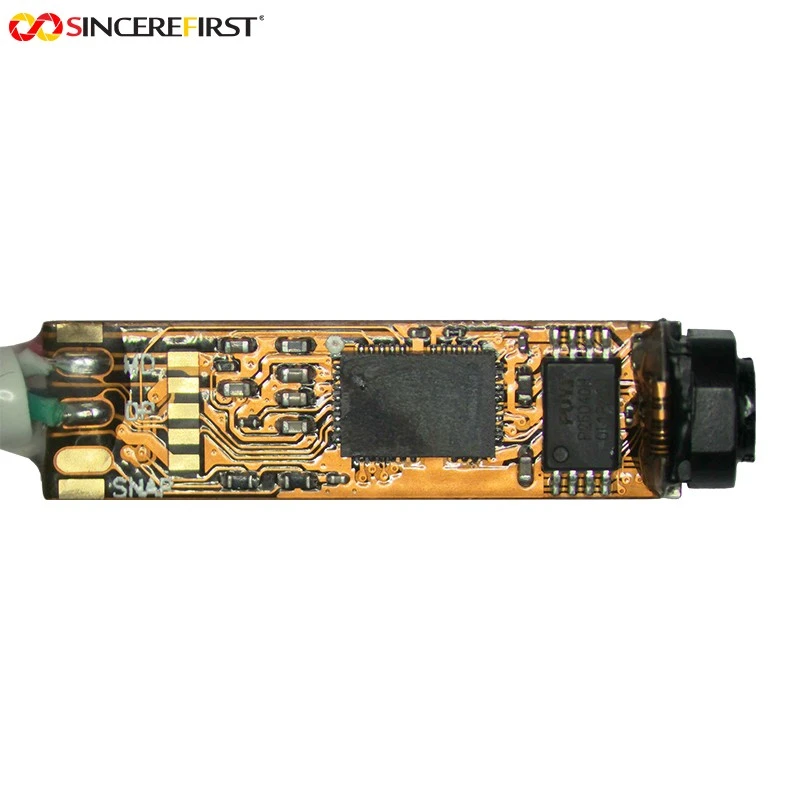

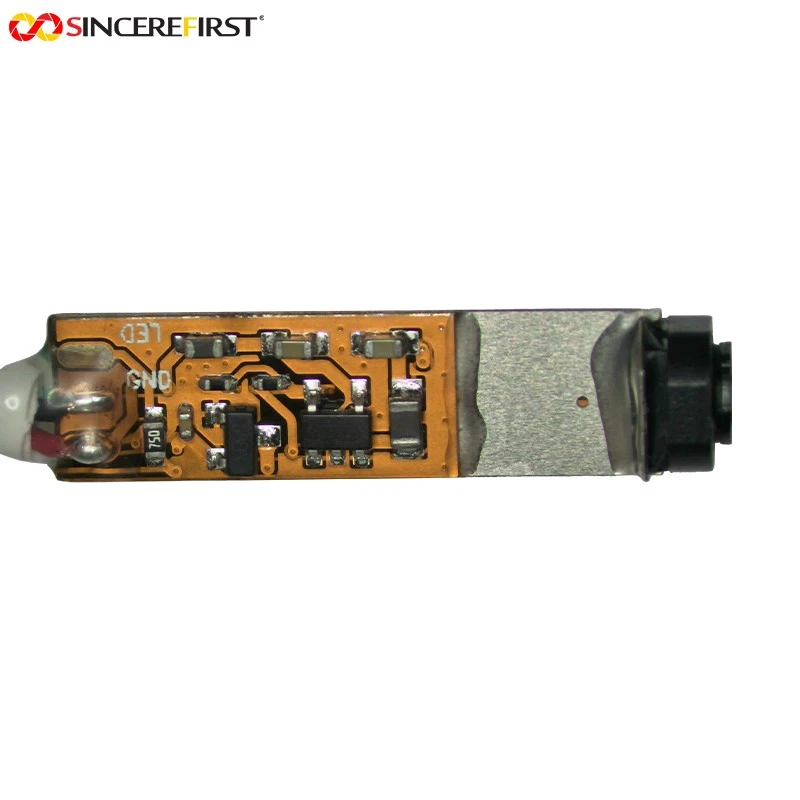

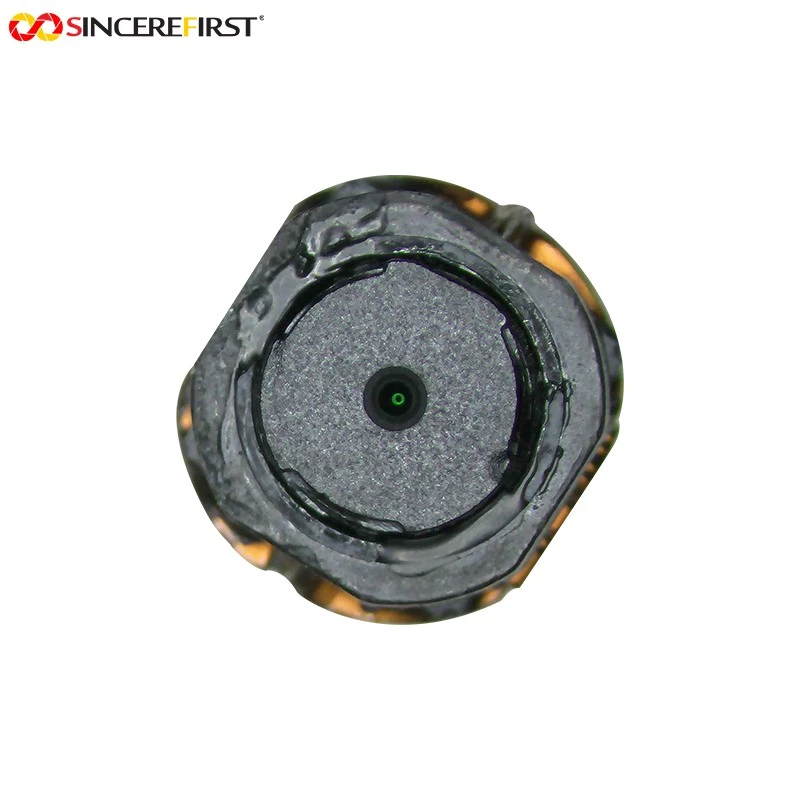

Qhov no 2MP 7.0mm Diameter Lens USB Endoscope Lub Koob Yees Duab Module yog tsim los rau kev cog lus endoscope thiab tshuaj xyuas cov khoom siv uas xav tau 1080P USB duab tso tawm hauv ib qho yooj yim 7.0mm integrated qauv. Nws siv 2MP 1/5-nti CMOS sensor nrog 1920 x 1080 daws teeb meem, 1.6μm x 1.6μm pixel loj thiab USB2.0 interface. Lub module txhawb MJPEG 1080P @ 30FPS cov zis thiab YUV cov zis ntawm cov kev daws teeb meem qis, nrog rau lub lens ruaj khov, D60℃pom lub kaum ntse ntse, 30mm-50mm tsom ntau yam thiab 650nm ± 10nm IR txiav lim. Piv nrog D8, qhov version no zoo dua rau cov khoom lag luam uas tsis tas yuav tsum muaj Steel Plhaub, LEDs lossis IP67 tiv thaiv.
Nta

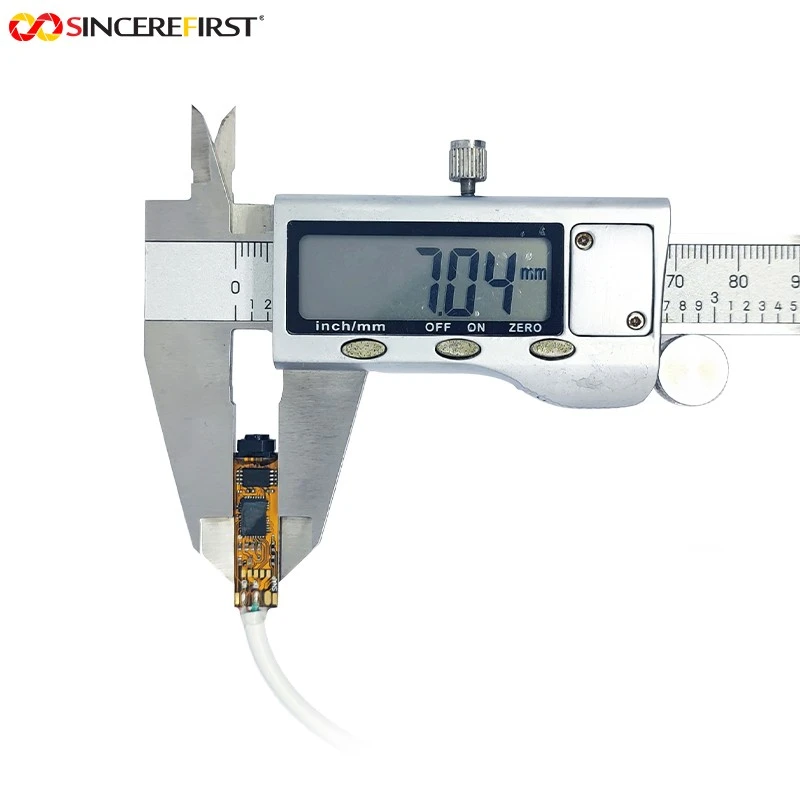

•7.0mm Diameter Lens Tsim
Fits compact soj ntsuam cov khoom uas xav tau ib tug me me 1080P USB endoscope lub koob yees duab qauv.
•2MP Full HD duab
Txhawb 1920 x 1080 daws teeb meem rau kev soj ntsuam pom kev pom thiab kos cov ntawv thov lub koob yees duab USB.
•MJPEG 1080P @ 30FPS tso zis
Muab 1080P @ 30FPS tso zis hauv MJPEG hom kom smoother Full HD duab saib ua ntej.
•Kho kom pom tseeb 30mm-50mm Range
Tsim los rau ze - ntau yam kev tshuaj xyuas cov haujlwm uas tswj qhov deb ntawm lub hom phiaj.
•650nm IR Hlais Lim
Xws li 650nm ± 10nm infrared txiav lim rau cov qauv pom pom - teeb duab coj cwj pwm.
•Yooj yim Integrated Structure
Tsim nyog rau tej yaam num uas tsis tas yuav Steel Plhaub, integrated LEDs los yog IP67 tiv thaiv.
Daim ntawv thov ntawm Endoscope Lub Koob Yees Duab Module
•Compact USB Inspection Devices
Haum rau cov khoom xav tau 7.0mm lens qauv thiab Full HD USB duab capture.
•Kaw -Kev Tshawb Xyuas Kev Pom Zoo
Ua haujlwm rau cov cuab yeej tshuaj xyuas qhov twg lub hom phiaj feem ntau nyob rau hauv kev tswj xyuas luv luv ua haujlwm.
•OEM Embedded koob yees duab khoom
tuaj yeem muab tso rau hauv cov khoom siv uas xav tau yooj yim USB2.0 duab yam tsis muaj kev tiv thaiv pem hauv ntej - qauv kawg.
•Tus nqi -Controlled Endoscope Projects
Ib qho kev xaiv siv tau thaum Steel Plhaub, LED teeb pom kev zoo thiab kev tiv thaiv IP67 tsis tas yuav tsum muaj.

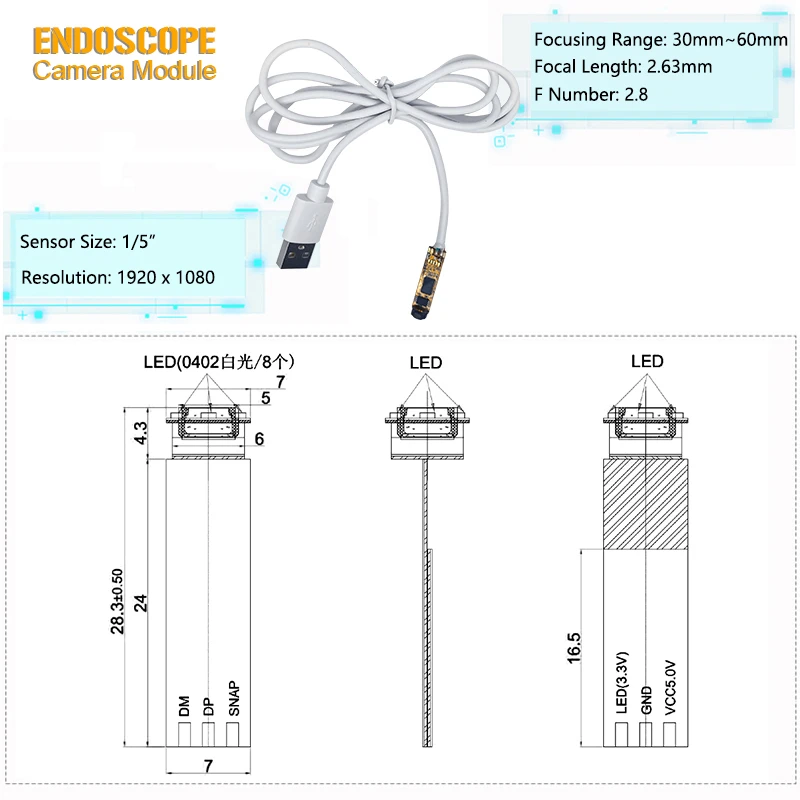

Khoom Paub meej
|
Khoom npe |
1080P 30FPS Intgrated Endoscope Lub Koob Yees Duab Module |
|
Sensor |
CMOS Sensor |
|
Pixel |
2 MP |
|
Kev daws teeb meem |
1920x1080 |
|
Ncej tus nqi |
1920 x 1080 @ 30 FPS |
|
Sensor Loj |
1/5" |
|
Tso zis hom |
MJPEG / YUV |
|
Focal Length |
2.63mm ib |
|
Focusing Range |
30mm ~ 50mm |
|
F.NO |
2.8 |
|
Saib lub kaum sab xis |
D60 degree |
|
TV Distortion |
< 1% |
|
Optical Lim |
IR txiav lim 650nm ± 10nm |
|
Txoj kab uas hla |
7.0mm ib |
|
Qauv |
Integrated tsim |
|
Kev them nyiaj yug System |
Windows, Linux nrog UVC, Mac OS, WinCE, Android nrog UVC |
|
Interface |
USB 2.0 |
Customization Options
7.0mm Lens Fit Kev Ntsuam Xyuas
Lub 7.0mm Diameter Lens qauv can raug ntsuas tawm tsam cov khoom qhib, ua haujlwm nrug thiab qhov chaw teeb tsa.
Kaw -Range Focus Matching
Lub 30mm-50mm tsom ntau yam tuaj yeem sib phim rau kev soj ntsuam deb thiab lub hom phiaj khoom loj.
USB 2.0 Host Integration
USB2.0 tus cwj pwm tso zis tuaj yeem ntsuas raws li tus tswv system, software workflow thiab ntaus ntawv - sab yuav tsum tau ua.
Optical Filter Configuration
Cov kev taw qhia IR txiav lim tuaj yeem sib tham raws li pom tau - teeb pom kev zoo thiab kev tsim xim xim.
Integrated Structure Adaptation
Qhov yooj yim ib qho -cov qauv qauv tuaj yeem hloov kho raws li qhov chaw nyob thiab txoj kev sib dhos.
FAQ
Q: SF-C2015USB-1080P-D7 yog dab tsi?
A: Nws yog tsim los rau compact USB tshuaj xyuas cov khoom uas xav tau 1080P duab nyob rau hauv ib tug yooj yim 7.0mm qauv.
Q: Puas yog D7 txhawb nqa Steel Plhaub, LEDs lossis IP67 tiv thaiv?
A: Tsis yog D7 tsis txhawb nqa Steel Plhaub, kev sib xyaw LEDs lossis kev tiv thaiv IP67.
Q: Qhov txawv ntawm D7 thiab D8 yog dab tsi?
A: D8 txhawb nqa Steel Plhaub, 8 LEDs thiab IP67 tiv thaiv, thaum D7 yog qhov yooj yim dua 7.0mm integrated version.
Q: Qhov kev daws teeb meem twg nws txhawb nqa?
A: Nws txhawb 2MP 1920 × 1080 daws teeb meem.
Q: Nws puas txhawb 1080P @ 30FPS?
A: Yog. Nws txhawb 1080P @ 30FPS hauv MJPEG hom.
Q: Puas yog YUV kuj txhawb 1080P @ 30FPS?
A: Tsis yog. YUV tso zis txhawb qis dua - daws teeb meem hom xws li 480P@30FPS thiab 720P@10FPS.
Q: Qhov kev tsom xam yog dab tsi?
A: Kev tsom xam ntau yog 30mm-50mm.
Q: Kuv yuav muab dab tsi rau kev ntsuam xyuas qhov project?
A: Thov muab lo ntsiab muag txoj kab uas hla yuav tsum, ua hauj lwm nyob deb, host system, tso zis hom xav tau thiab mechanical layout.
