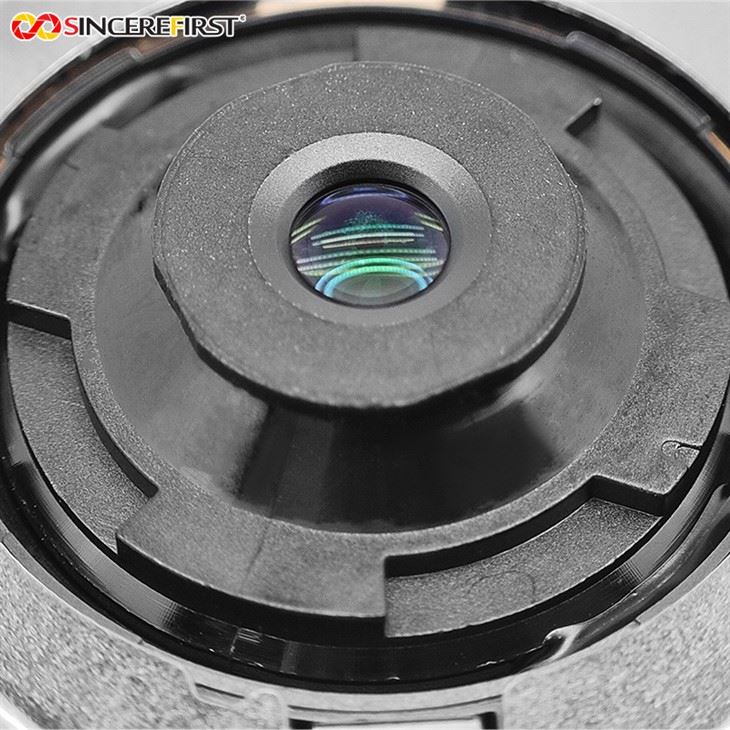

Sony IMX989 50MP Loj Sensor C-PHY Auto Focus FPC Lub Koob Yees Duab Module
Guangzhou Sincere Information Technology Ltd. yog ib qho ntawm cov kws tshaj lij Sony IMX989 50MP Loj Sensor C-PHY Auto Focus FPC Lub Koob Yees Duab Module tuam ntxhab thiab cov muag khoom hauv Suav teb. Txais tos rau cov lag luam wholesale luv nqi khoom muag ntawm no los ntawm peb lub hoobkas. Customized xaj yog txais tos.
Cov neeg tsim khoom tshawb nrhiav Sony IMX989 cov lus qhia tshwj xeeb feem ntau yuav tsum paub ntau dua li cov duab sensor tuaj yeem muab rau nws tus kheej. Lub koob yees duab tsim qauv kuj nyob ntawm lub lens, tsom cov qauv, interface, txuas thiab muaj qhov chaw siv tshuab. Cov qauv no sib koom ua ke 50MP IMX989 rau hauv kev teeb tsa FPC lub koob yees duab teeb tsa ua ib puag ncig nws loj 1/0.98-nti sensor hom.
IMX989 muab 8192 × 6144 haiv neeg daws teeb meem nrog 1.6 μm pixels thiab txhawb 4K@30FPS, 4-hauv-1 pixel ua haujlwm, Octa-PD, HDR thiab 8/10/12/14-ntsis RAW tso zis. Lub module ntxiv VCM Auto Focus, D87℃× H72℃× V57℃optical configuration thiab 30Pin BTB C-PHY MIPI interface. Active Alignment yog siv raws li tus txheej txheem ntau lawm rau cov qauv no.
Nta
•1/0.98-Inch Loj Sensor Platform
Lub Sony IMX989 siv 1/0.98-inch optical hom nrog 1.6 μm pixels, ua sensor loj ib qho ntawm cov laj thawj tseem ceeb los xav txog cov qauv no dua me me-hom 50MP lwm txoj hauv kev.
•50MP Native Image Detail
Lub sensor muab 8192 × 6144 haiv neeg daws teeb meem thaum qhov kev pom zoo video tso tawm yog 4K @ 30FPS, txhawb nqa cov haujlwm uas yuav tsum tau siab - daws teeb meem tseem - cov duab tau txais nrog rau 4K video tso zis.
•Octa-PD nrog VCM Auto Focus
Lub module txuas nrog IMX989 Octa-PD muaj peev xwm nrog VCM Auto Focus qauv thiab 13 cm rau Infinity tsom ntau yam rau cov khoom siv uas xav tau los ntes cov ntsiab lus ntawm kev hloov pauv.
•8/10/12/14-Ntsis RAW Output
Multi-ntsis RAW kev them nyiaj yug muab ob peb daim duab-cov ntaub ntawv qhov tob xaiv rau downstream ISP kev txhim kho thiab duab- cov kav xa dej.
•30Pin C-PHY MIPI Integration
Lub 30Pin BTB C-PHY MIPI interface muab lub tswv yim hais txog- sab kev sib koom ua ke rau OEM cov khoom siv uas siv cov txheej txheem sib xws thiab pawg thawj coj saib.
•Hauv -House Active Alignment Production
Cov qauv qauv no yog tsim los siv SincereFirst tus kheej cov cuab yeej Active Alignment. AA yog siv thaum lub koob yees duab module sib dhos ua cov txheej txheem tsim khoom ntau dua li raug kho raws li qhov tshwj xeeb ntawm IMX989 sensor nws tus kheej.
Daim ntawv thov ntawm MIPI Lub Koob Yees Duab Module
•Siab -Kev nthuav dav Handheld Imaging
Lub sensor loj, 50MP haiv neeg daws teeb meem thiab VCM Auto Focus tuaj yeem txhawb nqa cov cuab yeej siv tes tuav, cov cuab yeej siv tau yooj yim thiab lwm yam khoom siv uas xav tau cov ncauj lus kom ntxaws txog kev hloov pauv ntawm qhov sib txawv.
•Ntse Imaging Terminals
C-PHY interface thiab Auto Focus qauv tuaj yeem raug soj ntsuam rau cov khoom siv ntse, nkag mus rau cov khoom siv thiab cov duab kos duab uas xav tau lub koob yees duab siab - daws teeb meem hauv ib qho khoom siv sib xyaw.
•Document thiab Visual Capture
Kev daws teeb meem ib txwm muaj siab thiab ntau -ntsis RAW tso tawm ua rau cov qauv tsim nyog rau cov chaw khaws ntaub ntawv, cov khoom siv duab kos duab thiab lwm lub tshuab uas khaws cov duab nthuav dav tseem ceeb.
•OEM Siab -Kev daws teeb meem duab
Lub IMX989 module muab cov lus piav qhia loj -sensor lub koob yees duab txoj hauv kev rau cov cuab yeej siv duab tshwj xeeb uas lub party platform muaj qhov chaw siv tshuab txaus thiab muaj peev xwm ua tiav rau 1/0.98-nti sensor configuration.
Khoom Paub meej
|
Khoom npe |
8K Resolution AA Txheej Txheem MIPI Lub Koob Yees Duab Module |
|
Sensor |
Sony IMX989 CMOS Sensor |
|
Pixel |
50 MP |
|
Kev daws teeb meem |
8192x6144 |
|
Ncej tus nqi |
4K @ 30 FPS |
|
Sensor Loj |
1/0.98 nti |
|
Feature |
Octa-PD, HDR, 4-in-1 Pixel |
|
Tso zis hom |
8/10/12/14-ntsis RAW |
|
Focusing Range |
13cm ~ Infinity qhov siab |
|
EFL |
8.7 hli ± 5% |
|
F.NO |
1.9 ±5% |
|
FOV |
D87℃* H72℃* V57 degree |
|
Hom tsom |
VCM Auto Focus |
|
TV Distortion |
＜1% |
|
Txheej txheem |
Active Alignment (AA) Txheej Txheem - kev tsim khoom |
|
Interface |
30Pin BTB C-PHY MIPI Interface |
Customization Options
Loj -Sensor Mechanical Integration
Lub 1/0.98-nti sensor thiab optical pawg yuav tsum muaj ntau qhov chaw teeb tsa dua li kev teeb tsa lub koob yees duab me. Module qhov ntev, lens clearance thiab enclosure layout yuav tham nyob ib ncig ntawm lub hom phiaj ntaus ntawv ua ntej tus tsim yog tiav.
C-PHY Host thiab Connector Matching
Txoj kev 30Pin C-PHY yuav tsum sib phim nrog tus tswv tsev processor, connector thiab board architecture. Muaj cov interface thiab cov ntaub ntawv txuas tuaj yeem sib tham thaum lub sijhawm ua haujlwm.
Lens, FOV thiab Focus Configuration
Tus qauv D87℃× H72℃× V57℃saib thiab 13 cm rau Infinity tsom ntau yam tuaj yeem tshuaj xyuas thaum lub hom phiaj daim ntawv thov xav tau kev pab cuam sib txawv lossis kev coj cwj pwm.
FPC thiab Module Structure
FPC layout thiab lwm yam kev xav tau ntawm cov neeg kho tshuab tuaj yeem sib tham rau OEM cov khoom siv uas tus qauv qauv tsis ncaj qha rau qhov chaw muaj kev teeb tsa.
AA rau Lub Koob Yees Duab Tsim
Tus qauv IMX989 no siv Active Alignment raws li tus qauv tsim. Lwm cov qauv tsim lub koob yees duab tsim nyog kuj tuaj yeem tsim nrog AA raws li cov txheej txheem tsim khoom them nyiaj ntxiv thaum lawv cov kev xav tau kho qhov muag pom tseeb tus nqi ntxiv.
FAQ
Q: Vim li cas thiaj xaiv IMX989 lub koob yees duab module hloov lwm lub koob yees duab 50MP?
A: Qhov sib txawv tseem ceeb yog qhov loj 1/0.98-inch sensor hom nrog 1.6 μm pixels. Tej yaam num uas saib xyuas qhov loj me me, cov duab zoo ib txwm nthuav dav thiab loj -sensor optical configuration yuav nyiam txoj kev IMX989 dua me me-hom 50MP lwm txoj kev.
Q: Dab tsi yog qhov tseem ceeb Sony IMX989 sensor specifications siv nyob rau hauv no module?
A: Qhov kev teeb tsa no siv 50MP Sony IMX989 CMOS sensor nrog 8192 × 6144 haiv neeg daws teeb meem, 1/0.98-inch sensor hom thiab 1.6 μm pixels. Nws kuj txhawb 4-hauv-1 pixel ua haujlwm, Octa-PD thiab HDR.
Q: Puas yog qhov no ua tiav IMX989 lub koob yees duab module lossis tsuas yog cov duab sensor?
A: Qhov no yog ua tiav FPC lub koob yees duab module teeb tsa. Nws muab cov IMX989 sensor nrog lens optics, VCM Auto Focus, FPC, connector thiab C-PHY MIPI kev koom ua ke.
Q: Dab tsi interface yog IMX989 lub koob yees duab module siv?
A: Lub interface paub tseeb yog 30Pin BTB C-PHY MIPI interface. Lub party processor compatibility, connector routing thiab board kev koom ua ke yuav tsum tau paub tseeb hais tias ua ntej zaum kawg ntaus ntawv txoj kev loj hlob.
Q: Cov hom ntawv RAW twg tau txais kev txhawb nqa?
A: Cov duab tso zis pom tseeb muaj xws li 8-ntsis, 10-ntsis, 12-ntsis thiab 14-ntsis RAW.
Q: Dab tsi yog Auto Focus range?
A: Lub module siv VCM Auto Focus nrog qhov pom tseeb tsom ntau yam ntawm 13 cm mus rau Infinity.
Q: Kuv puas tuaj yeem thov cov qauv thiab cov ntaub ntawv qhia ua ntej tsim khoom?
A: Yog. Cov qauv tuaj yeem sib tham rau kev kuaj pom thiab kev sib koom ua ke, thiab cov ntaub ntawv muaj xws li cov khoom sib txuas, kev sib txuas thiab cov ntsiab lus ntawm cov tshuab tuaj yeem muab tau raws li qhov project theem.
Q: Puas yog FPC, lens lossis lub koob yees duab qauv tuaj yeem hloov kho?
A: Customization tuaj yeem sib tham nyob ib puag ncig qhov xav tau FPC layout, kho qhov muag teeb tsa, txuas thiab kev teeb tsa txhua yam ntawm lub hom phiaj ntaus ntawv.
Ntsuam xyuas IMX989 rau Loj -Sensor Lub Koob Yees Duab Tsim?
Lub 1/0.98-inch IMX989 muab txoj hauv kev sib txawv los ntawm me dua 50MP lub koob yees duab modules, tab sis nws kuj muab cov kev xav tau sib txawv ntawm qhov chaw kho qhov muag, optics thiab kev koom ua tswv cuab. Tham nrog SincereFirst los sib piv IMX989 kev teeb tsa nrog rau lwm qhov kev xaiv 50MP, tshuaj xyuas C-PHY kev koom ua ke lossis thov ib qho qauv rau kev sim ua haujlwm.
