4K 2K Ultra High Definition OV13B10 CSI 13mp Auto Focus Compact FPC Lub Koob Yees Duab Module
Guangzhou Sincere ntaub ntawv Technology Ltd. Txais tos rau cov lag luam wholesale luv nqi khoom muag ntawm no los ntawm peb lub hoobkas. Customized xaj yog txais tos.

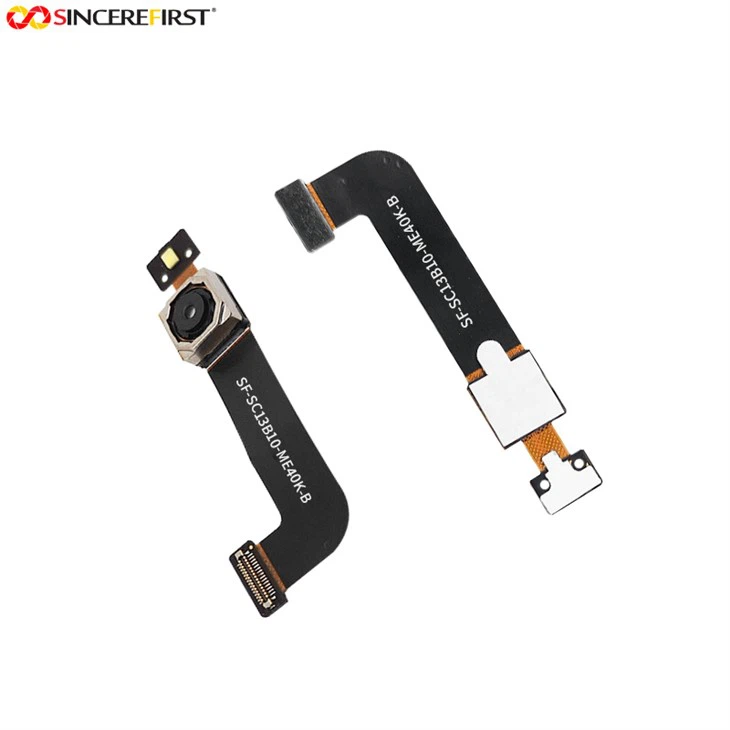

Qhov no yog 4K 2K ultra siab txhais OV13B10 CSI 13MP nws pib tsom compact FPC lub koob yees duab module, nruab nrog OmniVision OV13B10 CMOS xim duab sensor. Nrog 13MP siab pixel suav, nws ua tiav ultra- siab{10}} txhais cov duab. Ua ke nrog 1/3.06-inch sensor loj thiab 1.12μmx1.12μm pixel loj, daim duab cov ntsiab lus tau nthuav tawm nrog cov khoom noj zoo heev. Ib qho ntawm nws qhov tseem ceeb tshaj plaws yog kev txhawb nqa rau PDAF (Phase Detection Auto Focus) thev naus laus zis, uas tuaj yeem kaw nrawm thiab raug kaw rau qhov kev tua phom. Ua ke nrog 3.34mm focal ntev thiab F2.2 aperture, nyob rau hauv ib qho 80.3℃kab pheeb ces kaum ntawm saib (DFOV), nws tsis tsuas yog ua kom muaj kev qhib saib ntau yam tab sis kuj nthuav tawm cov duab pob tshab. Nyob rau tib lub sijhawm, lub module muaj kev ua haujlwm zoo heev. Lub distortion yog tsawg dua 1.5%, thiab qhov siab tshaj plaws imaging voj voog ncav cuag φ6.15mm. Nws tuaj yeem tso tawm ntau hom kev yees duab siab xws li 4K @ 30fps, 2K @ 30fps lossis 1080P @ 60fps. Los ntawm MIPI interface, nws paub txog cov ntaub ntawv sib kis tau zoo. Thiab nws yog tsim los siv cov txheej txheem SMT thiab AA (Active Alignment) thev naus laus zis, ua kom cov khoom muaj kev ruaj ntseg zoo thiab sib xws.
1. Ultra HD duab:Txais 13MP siab-pixel OV13B10 sensor, ua ke nrog 1/3.06-nti optical loj thiab 1.12μm pixels, ua kom muaj kev ua tau zoo ntawm cov duab cov ntsiab lus.
2. Ua kom pom tseeb Auto:Txhawb PDAF theem kev tshawb nrhiav thev naus laus zis, uas tuaj yeem nrawm thiab raug kaw rau qhov kev kawm, txhim kho kev ua haujlwm ntawm kev tua.
3. Ntau-Format Video Output:Txhawb ntau yam siab -txhais video tawm tswv yim xws li 4K@30fps, 2K@30fps thiab 1080P@60fps kom tau raws li kev xav tau sib txawv.
4. Kev Ua Haujlwm Zoo Tshaj Plaws: 80.3℃DFOV ua ke nrog F2.2 aperture, ntsuas lub kaum sab xis pom dav thiab lub teeb pom kev siab, nrog kev cuam tshuam los tswj<1.5%.
5. Stable Transmission thiab Craftsmanship: MIPI interface ua kom siab -cov ntaub ntawv xa mus ceev, thaum SMT txheej txheem thiab AA txheej txheem tsim khoom lav cov khoom sib xws thiab kev ntseeg tau.
Daim ntawv thovntawmCameraMua odul
1.Driver Monitoring Systems:Tso cai rau cov tub ntxhais kawm taug qab nyob rau hauv qis- teeb pom kev zoo kom ua raws li EU cov cai tswj xyuas lub sijhawm tiag -.
2.Electronic Rearview Mirror Integration: Adapts rau cov iav nkhaus tsim, txo qis ntug plooj hauv cov duab ntes.
3.Smartphone Secondary Camera System:Thiab txhim kho portrait zoom thiab qis - lub teeb yees duab nrog optimized focusing efficiency.
Khoom Paub meej
|
Khoom npe |
13MP 4K Cmos Lub Koob Yees Duab Module |
|
Hom Sensor |
OV13B 10 |
|
Focus Range |
10 cm ~ ∞ |
|
EFL |
3.34mm ib |
|
F.NO |
2.2 |
|
Distortion |
<1.5% |
|
Sensor Loj |
1/3.06 nti |
|
Kev daws teeb meem |
4K, 2K |
|
Hom interface |
MIPI |
|
FOV(D) |
80.3 |
SINCEREFIRST lub koob yees duab module tsim kev lag luam koom ua ke tsim, txhim kho, tsim khoom thiab muag khoom. Peb tuaj yeem npaj npaj ua 0.3mp rau 108mp FPC & USB lub koob yees duab module thiab txoj kab uas hla 0.9mm ~ 8.0mm endoscope koob yees duab module. Peb cov khoom siv dav siv hauv ntau qhov chaw, xws li cov cuab yeej AIoT, lub tsev ntse, kev kho mob ntse, kev thauj mus los ntse, kev tsav tsheb tsis siv neeg, kev ruaj ntseg ntse, ntse warehousing, scanning, neeg hlau, UAV, kho mob endoscope, industrial endoscope, computer, ntse terminals thiab lwm yam.
Yog tias koj tab tom nrhiav lub koob yees duab module lossis lub koob yees duab sensor manufacturers thiab cov chaw muag khoom, thov koj xav tiv tauj peb rau lub koob yees duab module nqi thiab cov lus qhia ntxaws ntxiv. SINCEREFIRST yog lub tuam txhab ua haujlwm siab - thev naus laus zis tshwj xeeb hauv kev tsim khoom siv kho qhov muag thiab cov chaw kho qhov muag kho qhov muag. Muaj ntau hom koob yees duab modules thiab lub koob yees duab sensors muag, thiab lawv kuj txhawb customization kom tau raws li tag nrho koj cov kev xav tau thiab daws koj cov teeb meem.
Cim npe nrov: 4K 2K Ultra High Definition OV13B10 CSI 13mp Auto Focus Compact FPC Lub Koob Yees Duab Module, Tuam Tshoj 4K 2K Ultra High Definition OV13B10 CSI 13mp Auto Focus Compact FPC Lub Koob Yees Duab Module lwm tus neeg, Hoobkas
