CSI Lub Koob Yees Duab Module

Guangzhou Sincere Information Technology Ltd. yog ib qho ntawm cov kws tshaj lij csi koob yees duab module manufacturers thiab lwm tus neeg nyob hauv Suav teb. Txais tos rau cov lag luam wholesale luv nqi khoom muag ntawm no los ntawm peb lub hoobkas. Customized xaj yog txais tos.

ODM / OEM CUSTOMIZED DESIGN yog txais tos!

Qhov zoo tshaj plaws kev ruaj ntseg

1 xyooHloov!

10 xyoolav!

Peb tsuas yog muab cov khoom qub qub,100%xyuas kom qhov zoo tshaj plaws!

Tag nrho cov khoom tau raug kuaj xyuas thiab ntim rau hauv qhov chaw zoo ua ntej xa!

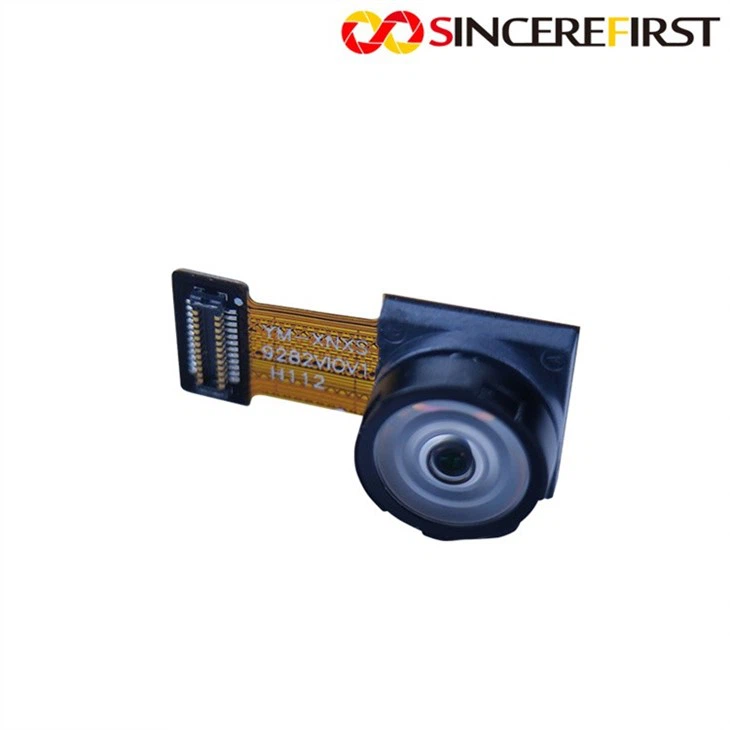

CSI lub koob yees duab module: SF-XNXS9282VIOV

Ntiaj teb shutter SF-XNXS9282VIOV yog 1MP MIPI CSI lub koob yees duab module, uas yog qhov muag muag los ntawm SINCERE FIRST hauv kev ua lag luam tam sim no. Lub koob yees duab module no nrog 100% thawj 1/4inch OV9282 duab sensor, tag nrho cov kev daws teeb meem yog 1280 * 800, kev txhawb nqa rau lwm cov duab loj: 1280x800, 1280x720, 640x480, 640x400. OV9282 sensor yog monochrome thiab nrog qhov siab tshaj plaws ntawm cov duab hloov pauv: 1280 x 800: 120 fps, lub sijhawm cuam tshuam tsawg kawg yog 1 kab sijhawm, feem ntau lub ntiaj teb kaw CSI lub koob yees duab module SF-XNXS9282VIOV tuaj yeem siv rau kev kub ceev txav, tshuab pom thiab PCNB ect.

CSI lub koob yees duab module SF-XNXS9282VIOV yog nrog lub taub hau loj ntawm ib ncig ntawm 9mm * 9mm * 7mm, qhov ntev ntawm tag nrho lub koob yees duab module yog nyob ib ncig ntawm 17mm, SINCERE FIRST tuaj yeem txhawb OME ntawm qhov loj ntawm lub koob yees duab module ib qhov kev xav tau sib txawv. Cov kev npaj ua tiav tuaj yeem ua rau 650nm IR lim lossis 940nm IR lim. Customized los ua lwm yam IR lim kuj tau txais. Tsis muaj MOQ. Lub kaum sab xis ntawm lub ntiaj teb shutter CSI lub koob yees duab module SF-XNXS9282VIOV yog nyob ib ncig ntawm DFOV 150 degrees, tsom ntau yam yog nyob ib ncig ntawm 10cm rau infinity, tsis tshua muaj distortion<0.25%, F.number is 2.0, the lens can be without glue, then the consumer can change to other lens or adjust the focusing range, if the consumers have special requirement on the camera module, SINCERE FIRST supports OEM.

Lub connector ntawm CSI lub koob yees duab module SF-XNXS9282VIOV yog board rau board, lub connector kuj yuav customized rau DVP, USB interface. Lub connector qauv ntawm npaj ua lub koob yees duab module yog 503776-2420, SINCERE FIRST tuaj yeem muab mating connector thiab.

SINCERE FIRST txhawb 1 xyoo hloov, 10 xyoo warranty.

Cim npe nrov: Tuam Tshoj csi koob yees duab module lwm tus neeg, Hoobkas
