OV5648 5MP Fixed Focus Separated USB Lub Koob Yees Duab Module rau Industrial Tshuab Vision
Guangzhou Sincere Information Technology Ltd. yog ib qho ntawm cov kws tshaj lij OV5648 5MP Fixed Focus Separated USB Lub Koob Yees Duab Module rau Industrial Tshuab Vision tuam ntxhab thiab cov muag khoom hauv Suav teb. Txais tos rau cov lag luam wholesale luv nqi khoom muag ntawm no los ntawm peb lub hoobkas. Customized xaj yog txais tos.
Qhov no 5MP cais USB lub koob yees duab module siv OmniVision OV5648 CMOS sensor los txhawb 2592 x 1944 daws teeb meem thiab 2592 x 1944 @ 15FPS cov zis. Nrog MJPG tso zis thiab USB2.0 interface los ntawm PCB pawg thawj coj saib, nws yog tsim rau compact OEM imaging khoom uas xav tau ib tug cais lub koob yees duab qauv.
Lub module txais cov qauv PCB + FPC. Ntu lub koob yees duab txuas mus rau lub rooj tsavxwm PCB los ntawm 25-pin Kub ntiv tes MIPI interface, thiab PCB pawg thawj coj tawm los ntawm USB2.0. Rau cov haujlwm uas xav tau kev sib koom ua ke ncaj qha ntawm tus tswv-sab MIPI, MIPI version tsis muaj PCB board tuaj yeem raug soj ntsuam, thiab PCB board kuj tuaj yeem yuav nyias.
Nta

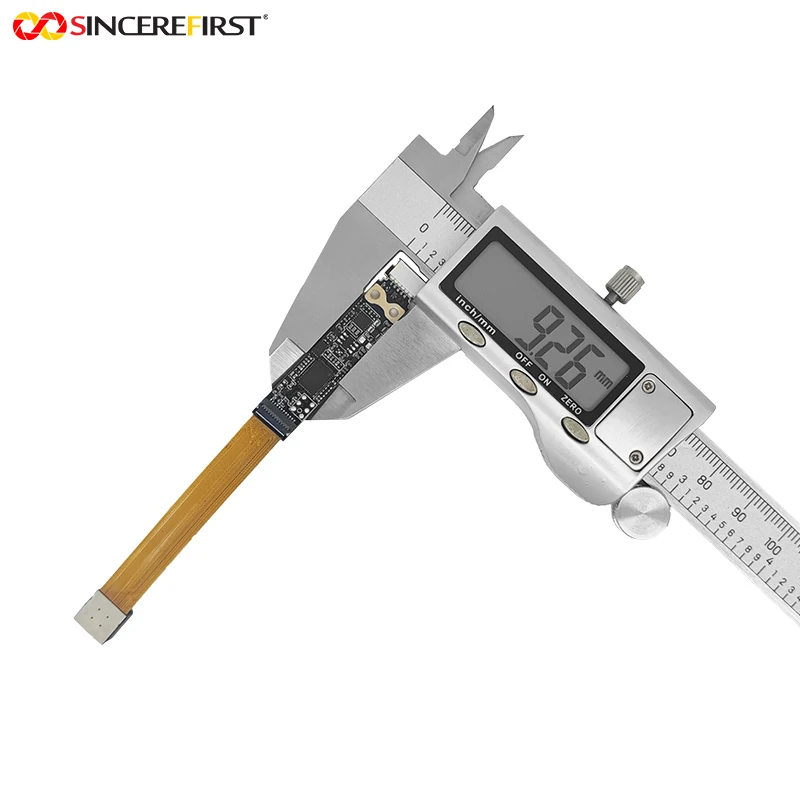

•Sib cais PCB + FPC Structure rau Flexible Layout
Cov qauv sib cais tso cai rau lub koob yees duab seem thiab USB tso zis PCB los npaj raws li qhov chaw sab hauv ntawm cov khoom kawg.
•OV5648 5MP Sensor rau kev ntes kom ntxaws
Lub OV5648 sensor txhawb 2592 x 1944 daws teeb meem, muab cov duab nthuav dav dua li VGA lossis 2MP modules.
•Fixed Focus Lens nrog D72 Lens Lub kaum ntse ntse
Lub Fixed Focus lens thiab D72 lub kaum ntse ntse lub kaum sab xis txhawb nqa ruaj khov- kev ntsuas qhov deb nrog cov kev ua tau zoo.
•MJPG tso zis los ntawm USB2.0 PCB Board
MJPG tso zis los ntawm USB2.0 pab ua kom yooj yim rau tus tswv tsev - sab duab ntes thiab ntsuas.
•25-pin Kub ntiv tes MIPI Txuas
Lub 25-pin Kub ntiv tes MIPI txuas txuas lub koob yees duab seem rau PCB pawg thawj coj saib rau kev sib cais USB module tsim.
•Yeem MIPI Version Tsis muaj PCB Board
Rau embedded host tej yaam num, MIPI lub koob yees duab seem tuaj yeem soj ntsuam yam tsis muaj USB PCB board.
Daim ntawv thov ntawm USB Lub Koob Yees Duab Module
•Sib cais USB Imaging Products
Tsim nyog rau cov khoom siv uas lub koob yees duab txoj hauj lwm thiab lub rooj tsav xwm tseem ceeb yuav tsum tau sib cais, xws li cov duab kos duab los yog cov cuab yeej kev cai pom kev.
•Embedded MIPI Evaluation Projects
Qhov kev xaiv MIPI version yam tsis muaj PCB lub rooj tsavxwm tuaj yeem txhawb nqa tus tswv- sab MIPI kev ntsuas ua ntej kawg USB lossis kos cov khoom tsim.
•Tsau -Kev Paub Txog Qhov Ncauj Terminals
Lub 5MP sensor thiab Fixed Focus lens tuaj yeem txhawb nqa ruaj khov - daim ntawv thov kev ntes nyob deb xws li kev nyeem ntawv daim ntawv lo, cov khoom ntes lossis cov cim cim.
•OEM Lub Koob Yees Duab Module Kev Tsim Kho
Pab tau rau OEM tej yaam num uas yuav tsum tau saj zawg zog PCB / FPC qauv, xaiv PCB board muas thiab kev cai connector soj ntsuam.
Khoom Paub meej
|
Khoom npe |
FHD 1080P Separated USB Lub Koob Yees Duab Module |
|
Duab Sensor |
OmniVision OV5648 CMOS sensor |
|
Pixel |
5 MP, 2592x1944 |
|
Kev daws teeb meem |
1920 x 1080 @ 30 FPS |
|
Sensor Loj |
1/4 nti |
|
Hom tsom |
VCM Autofocus |
|
Focusing Range |
60 cm |
|
F.NO |
2.8 |
|
FOV |
D72 degree |
|
Qauv |
Sib cais USB module, PCB DSP + FPC qauv |
|
Board kev sib txuas |
25-pin kub ntiv tes txuas rau DSP board |
|
Interface |
USB 2.0 |
|
raws tu qauv |
UVC |
Customization Options
USB los yog MIPI Integration Path
Cov neeg siv khoom tuaj yeem ntsuas qhov ua tiav USB version lossis MIPI version yam tsis muaj PCB pawg thawj coj saib raws li tus tswv tsev xav tau.
PCB Board Kev yuav khoom xaiv
Lub rooj tsavxwm PCB tuaj yeem raug soj ntsuam lossis yuav khoom sib cais thaum cov neeg siv khoom xav tau kuaj cov sib txawv sensor board ua ke.
FPC thiab Connector Design
FPC ntev, txuas kev taw qhia thiab 25-pin Kub ntiv tes txhais tau tuaj yeem tshuaj xyuas rau kev sib xyaw ua ke ntawm cov khoom lag luam.
Lens thiab ua haujlwm nrug
Lens lub kaum sab xis, aperture thiab 60cm qhov tob ntawm thaj teb tuaj yeem ntsuas raws li lub hom phiaj daim ntawv thov.
Kev ntsuam xyuas cov duab tso zis
MJPG tso zis tus cwj pwm, USB host kev them nyiaj yug thiab cov duab teeb tsa tuaj yeem raug tshuaj xyuas thaum kuaj cov qauv.
FAQ
Q: Tus qauv lees paub rau nplooj ntawv khoom no yog dab tsi?
A: Tus qauv paub tseeb yog SF-F5AFT+SF-U502P-5648.
Q: Dab tsi sensor no module siv?
A: Nws siv OmniVision OV5648 CMOS sensor nrog 5MP daws teeb meem.
Q: Hom kev tsom xam yog dab tsi?
A: Nplooj ntawv khoom no siv Fixed Focus raws li cov ntaub ntawv paub tseeb ntawm cov khoom.
Q: Lub kaum sab xis ntawm lub lens yog dab tsi?
A: Lub kaum sab xis pom tseeb yog D72.
Q: Qhov no puas yog USB module lossis MIPI module?
A: Cov khoom lag luam yog cais USB module nrog PCB + FPC qauv. Ib qho MIPI version tsis muaj PCB board kuj tuaj yeem raug soj ntsuam.
Q: Cov qauv sib cais ua haujlwm li cas?
A: Lub koob yees duab ntu txuas mus rau PCB pawg thawj coj los ntawm 25-pin Kub ntiv tes MIPI interface, thiab PCB pawg thawj coj tawm los ntawm USB2.0.
Q: PCB board puas tuaj yeem yuav nyias?
A: Yog. Lub rooj tsav xwm PCB tuaj yeem yuav khoom sib cais raws li qhov yuav tsum tau ua.
Q: Cov ntaub ntawv dab tsi kuv yuav tsum muab ua ntej thov tus qauv?
A: Thov muab koj daim ntawv thov, USB lossis MIPI qhov yuav tsum tau ua, kev tso npe ntawm pawg thawj coj saib, FPC ntev, ua haujlwm nrug, FOV thiab qhov yuav tsum tau ua.
Xav tau 5MP OV5648 cais USB lub koob yees duab module lossis xaiv MIPI version rau koj qhov project OEM?
Xa SincereFirst koj lub party platform, USB / MIPI integration txoj kev npaj, PCB / FPC layout, connector yuav tsum tau thiab ua hauj lwm nrug. Peb pab neeg tuaj yeem pab ntsuam xyuas qhov tsim nyog rau koj lub cuab yeej.
