IMX{0}}MP USB Lub Koob Yees Duab Module
Guangzhou Sincere Information Technology Ltd. yog ib qho ntawm cov kws tshaj lij imx179 8mp usb lub koob yees duab module tuam ntxhab thiab cov muag khoom hauv Suav teb. Txais tos rau cov lag luam wholesale luv nqi khoom muag ntawm no los ntawm peb lub hoobkas. Customized xaj yog txais tos.
Taw qhia:

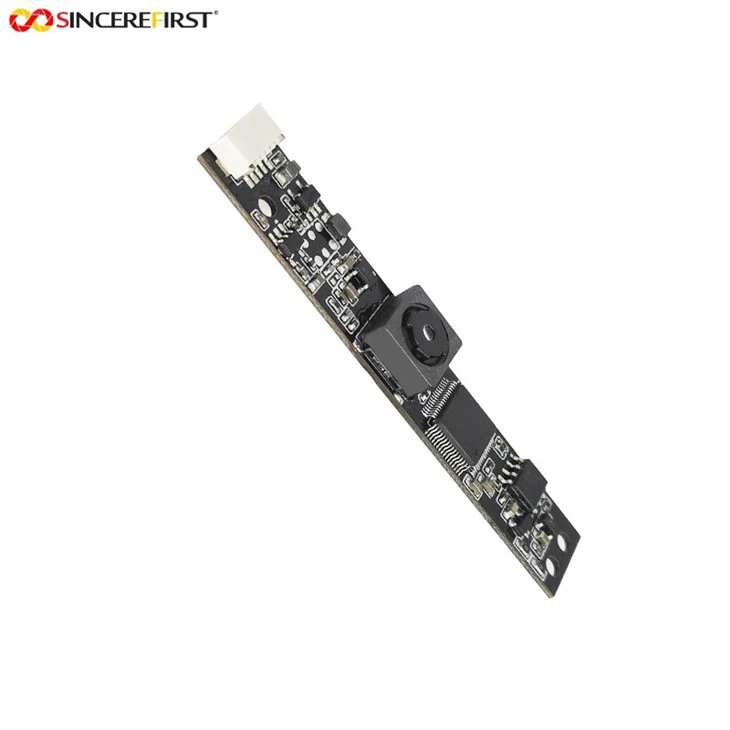

Lub koob yees duab no yog raws li 8MP IMX179 USB Lub Koob Yees Duab Module. max daws teeb meem & ncej tus nqi yog 3264 (H) × 2448 (V) @ 30fps. Tsis tas li ntawd, peb tau nruab lub koob yees duab nrog Auto Focus Lens. SincereFirst tau tsim thiab tsim lub koob yees duab no raws li SONY IMX179 sensor. SincereFirst pab neeg tau cog lus los tsim kom yooj yim dua thiab siv tau zoo dua lub koob yees duab daws teeb meem. Peb tau nthuav dav qhov kev siv ntawm lub sensor, ua kom lub koob yees duab paub txog koj ntau yam haujlwm. Lub koob yees duab tau nruab nrog 72℃(D) autofocus lens, tso cai rau koj siv nws rau ntau daim ntawv thov. Nws yog sib xws nrog Windows, Linux, Android thiab MAC thiab tsis tas yuav tsav tsheb ntxiv. Yog tias koj muaj lwm yam kev xav tau, thov sib txuas lus nrog peb pab neeg muag khoom, peb tos ntsoov yuav koom tes nrog koj ntxiv.
Nta:
◆Super HD 8MP High Resolution- Tsau tsom iav lens 8MP usb lub koob yees duab module muab vivid, siab -txhais 2448p video, ntes cov ntsiab lus zoo siab tshaj plaws ntawm txhua 30/15fps, muab HD zoo kawg ntawm cov duab meej. MJPEG/YUY2 daim duab hom, kis tau tus mob ceev, txhais tau hais tias koj cov vis dis aus kaw tau meej thiab vivid, thiab muaj yeeb yuj. Saib lub kaum ntse ntse: 72 degree.
◆Sony IMX179 Duab Sensor- 8 megapixel webcam nrog Sony IMX179 CMOS Sensor yog tus qauv siab ntawm cov duab zoo thiab kev ua tau zoo. Zoo meej rau qib siab video system rau tus kheej lossis kev lag luam. Max.Resolution: 3264(H)X2448(V):HighDefinition 1024x768@30fps/3200x2400@20fps/3264X2448@15fps.
◆ Lower Colour Reproduction Deviation- Webcam nrog lub ntsiab lus siab thiab qis dua xim sib txawv tsim cov duab ntse thiab cov ntaub ntawv raug, Super me thiab nyias profile rau embedded daim ntaub ntawv. Lub koob yees duab compact rau txhua yam ntawm lub tshuab tsis pom kev.
◆Quick Plug&Play- Lub koob yees duab usb no siv tau yooj yim, tsuas yog ntsaws thiab lub koob yees duab rau hauv lub computer USB chaw nres nkoj thiab khiav cov software tuaj yeem ua rau video tso saib thiab kaw ua haujlwm. Tsis xav tau kev teeb tsa tsav tsheb. Txhawb USB 2.0 OTG, kev kub ceev usb 2.0 cov ntaub ntawv kis tau tus mob, tuav tsawg bandwidth, zoo heev txhim kho kev ua hauj lwm efficiency.
◆Zoo tshaj Universal Compatibility- 8MP webcam usb lub koob yees duab muaj ntau yam rau Skype, OBS, Zoom, GoToMeeting, Facebook LIVE, thiab YouTube Livestreaming cov kev pab cuam, dav ua hauj lwm nrog WinXP/Vista/Windows 7/8,Windows 10 Linux nrog UVC(saum toj no linux-2.6.26) MAC-4. 4.0 lossis siab dua nrog UVC.
Daim ntawv thov ntawm USB lub koob yees duab Module:
• 3D scanner
• VR lub koob yees duab
• electronic microscope
• tshuab kho mob
• Video System
• Kev soj ntsuam
• Automated duab nrhiav system
Khoom Paub meej:
|
Sensor |
IMX 179 |
|
Pixel |
8 mega |
|
Ua kom pom tseeb |
Auto Focus, AF |
|
Focusing Range |
10cm rau Infinity |
|
Focal Length |
3.85mm ib |
|
F Number |
2.2 |
|
FOV(D) |
72 degree |
|
TV Distortion |
＜1.5% |
|
DSP |
USB 2.0 DSP |
|
Tso zis hom |
YUV/MJPEG output |
SINCEREFIRST lub koob yees duab module tsim kev lag luam koom ua ke tsim, txhim kho, tsim khoom thiab muag khoom. Peb tuaj yeem npaj npaj ua 0.3mp rau 108mp FPC & USB lub koob yees duab module thiab txoj kab uas hla 0.9mm ~ 8.0mm endoscope koob yees duab module. Lub koob yees duab module no tau siv dav hauv ntau lub siab - thev naus laus zis, xav tau cov ntawv thov xws li tsheb, ADAS, kho mob duab, 3D, cov khoom siv txawb, kev soj ntsuam thiab kev ruaj ntseg, AR thiab VR, neeg hlau, kev txawj ntse (AI), kev paub lub ntsej muag, lub ntsej muag lub ntsej muag, lub zeem muag hauv computer, kev tswj xyuas, thiab lwm yam.
Yog tias koj tab tom nrhiav lub koob yees duab module lossis lub koob yees duab sensor manufacturers thiab cov chaw muag khoom, thov koj xav tiv tauj peb rau lub koob yees duab module nqi thiab cov lus qhia ntxaws ntxiv. SINCEREFIRST yog lub tuam txhab ua lag luam siab tshaj - thev naus laus zis tshwj xeeb hauv kev tsim khoom siv kho qhov muag thiab cov chaw kho qhov muag kho qhov muag. Muaj ntau hom koob yees duab modules thiab lub koob yees duab sensors muag, thiab lawv kuj txhawb customization kom tau raws li tag nrho koj cov kev xav tau thiab daws koj cov teeb meem.
FAQ
Q: Lub koob yees duab sensors puas tuaj yeem hnav?
Q: Vim li cas sensor rhiab heev tseem ceeb?
Q: Dab tsi yog lub luag haujlwm ntawm lub koob yees duab module?
Q: Dab tsi yog CMOS sensor hauv lub koob yees duab?
Q: Cov duab sensors ua haujlwm li cas?
