2MP AR0230 CMOS HDR WDR USB2.0 Tsawg Lub Teeb Lub Koob Yees Duab Module
Guangzhou Sincere Information Technology Ltd. yog ib tus kws tshaj lij 2mp ar0230 cmos hdr wdr usb2.0 low light camera module manufacturers thiab lwm tus neeg nyob hauv Suav teb. Txais tos rau cov lag luam wholesale luv nqi khoom muag ntawm no los ntawm peb lub hoobkas. Customized xaj yog txais tos.
Qhov no yog tsim rau embedded tsis pom kev tej yaam num uas yuav tsum tau txhim khu kev qha 1080P duab nyob rau hauv siab - sib piv los yog qis - teeb. Nrog rau 1/2.7 nti AR0230 CMOS sensor, 3.0μm pixel loj, WDR / HDR / DR-Pix thev naus laus zis, NIR- txhim kho kev ua tau zoo thiab kev txhawb nqa UVC, USB2.0 lub koob yees duab module no yog tsim rau kev soj ntsuam cov cuab yeej, paub cov terminals, nkag mus rau cov duab tswj thiab cov khoom siv hauv kev lag luam.
Nta
•AR0230 2MP CMOS Sensor
Siv ib qho Onsemi AR0230 sensor rau ruaj khov 1080P duab hauv kev pom kev pom.
•Kev them nyiaj yug WDR thiab HDR duab
Pab txhim kho cov duab pom hauv scenes nrog lub teeb pom kev zoo lossis teeb pom kev zoo sib xws.
•DR-Pix thiab NIR Enhancement
Txhawb nqa zoo dua -lub teeb thiab nyob ze -infrared imaging kev ua tau zoo rau kev soj ntsuam thiab kev paub txog tej yaam num.
•Loj 3.0μm Pixel Loj
Txhim kho lub teeb rhiab heev piv nrog me me -pixel sensors hauv qis- teeb lossis sib xyaw- teeb pom kev zoo.
•USB 2.0 UVC kev koom ua ke
Txhawb nqa tus qauv USB2.0 thiab UVC raws tu qauv rau tus tsav tsheb- kev tshuaj xyuas dawb ntawm cov tshuab siv tau.
•Tsau Focus Lens Design
Muab cov duab ruaj khov rau kev ruaj khov - cov khoom siv nyob deb, cov cuab yeej saib xyuas thiab cov chaw nres tsheb paub.
Daim ntawv thov ntawm USB Lub Koob Yees Duab Module
•Access Control thiab Face Recognition Devices
Haum rau cov terminals uas xav tau ruaj khov 1080P duab nyob rau sab hauv tsev thiab ib nrab- teeb pom kev zoo sab nraum zoov.
•Kev soj ntsuam ntse thiab cov cuab yeej ruaj ntseg
Ua haujlwm rau kev soj ntsuam lossis saib xyuas cov khoom siv uas xav tau WDR, HDR thiab qis - teeb pom kev zoo.
•Tsheb thiab Traffic Recognition Systems
Muaj peev xwm raug soj ntsuam rau txoj kev kos npe, daim ntawv tso cai daim ntawv tso cai lossis kev paub txog kev tsheb khiav hauv qab lub teeb hloov.
•Industrial Vision Terminals
Txhawb nqa tshuab terminals uas yuav tsum tau compact USB2.0 duab thiab ruaj khov kho -focus capture.

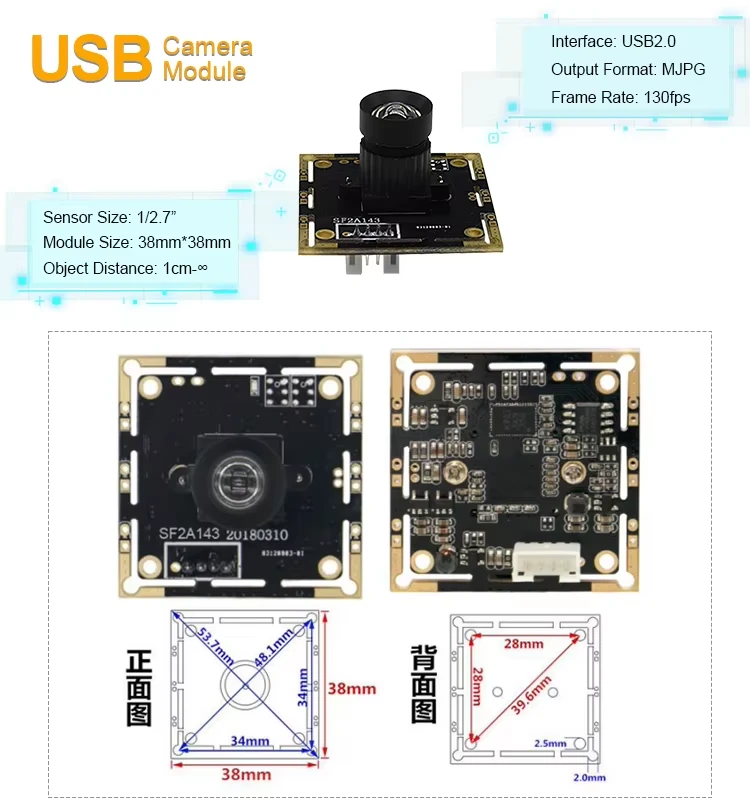

Khoom Paub meej
|
Khoom npe |
HDR Tsawg Lub Teeb 2MP USB Lub Koob Yees Duab Module |
|
Duab Sensor |
Onsemi AR0230 CMOS sensor |
|
Pixel |
2 MP |
|
Kev daws teeb meem |
1920 x 1080 @ 30 FPS |
|
Sensor Loj |
1/2.7 nti |
|
Nta |
WDR, HDR, DR-Pix, NIR- ua kom zoo dua |
|
Qhov deb |
1 cm ~ ∞ |
|
Tso zis hom |
MJPG |
|
Interface |
USB 2.0 |
|
ModuleSize |
38mm * 38 hli |
Customization Options
Lens Parameter thiab FOV Review
Lens tsis tuaj yeem tshuaj xyuas raws li kev saib xyuas qhov deb, paub ntau yam thiab qhov kawg teb - ntawm - saib cov cai.
WDR / HDR / NIR Scene Evaluation
WDR, HDR thiab NIR-Txoj kev coj tus cwj pwm cuam tshuam tuaj yeem raug soj ntsuam raws li qhov teeb pom kev zoo thiab qhov chaw thov.
Duab Parameter Tuning Review
Brightness, contrast, saturation, sharpness, dawb tshuav nyiaj li cas thiab raug teeb tsa yuav raug tshuaj xyuas kom zoo dua scene adaptation.
USB2.0 UVC Lub Tswv Cuab Kev Sib Koom Sib Tham
USB2.0 UVC kev koom ua ke tuaj yeem raug tshuaj xyuas raws li tus neeg siv khoom lub platform thiab software compatibility xav tau.
38mm × 38mm Structure Review
Cov qauv qauv tuaj yeem tshuaj xyuas raws li qhov chaw nyob, mounting txoj kev thiab cov khoom siv sab hauv.
FAQ
Q: Lub ntsiab kom zoo dua ntawm no AR0230 USB koob yees duab module yog dab tsi?
A: Nws lub ntsiab kom zoo dua yog ruaj khov 1080P duab nrog WDR, HDR, DR-Pix thiab NIR- txhim kho kev ua tau zoo.
Q: Cov qauv no puas haum rau cov ntawv siv qis-?
A: Yog. Lub 3.0μm pixel loj thiab NIR- txhim kho kev ua tau zoo ua rau nws haum rau qis- ntsuas lub teeb.
Q: Lub koob yees duab no puas txhawb UVC?
A: Yog. Nws txhawb nqa tus qauv UVC raws tu qauv rau tus tsav tsheb- siv dawb rau cov tshuab siv tau.
Q: Hom ntawv tso zis twg nws txhawb nqa?
A: Cov qauv no txhawb nqa MJPG tso zis hom.
Q: Lub lens puas tuaj yeem kho tau?
A: Yog. Lens tsis, FOV thiab tsom qhov deb tuaj yeem hloov kho raws li qhov yuav tsum tau ua.
Q: Puas yog nws tsim nyog rau kev lees paub lub ntsej muag lossis kev tswj xyuas?
A: Yog. Nws tuaj yeem raug soj ntsuam rau kev nkag mus rau kev tswj xyuas, kev lees paub lub ntsej muag thiab kev soj ntsuam cov terminals.
Q: Cov duab puas tuaj yeem hloov kho rau qhov chaw teeb pom kev zoo?
A: Yog. Kev kho duab tuaj yeem tshuaj xyuas rau siab - qhov sib piv, backlight lossis sib xyaw- teeb pom kev zoo.
Q: Kuv yuav muab dab tsi ua ntej kev ntsuam xyuas?
A: Thov muab lub hom phiaj daim ntawv thov, teeb pom kev zoo, ua hauj lwm nyob deb, FOV, host platform thiab cov qauv yuav tsum tau.
