4k Lub Koob Yees Duab Module

Guangzhou Sincere Information Technology Ltd. yog ib qho ntawm cov kws tshaj lij 4k koob yees duab module manufacturers thiab lwm tus neeg nyob hauv Suav teb. Txais tos rau cov lag luam wholesale luv nqi khoom muag ntawm no los ntawm peb lub hoobkas. Customized xaj yog txais tos.

ODM / OEM CUSTOMIZED DESIGN yog txais tos!

Qhov zoo tshaj plaws kev ruaj ntseg

1 xyooHloov!

10 xyoolav!

Peb tsuas yog muab cov khoom qub qub,100%xyuas kom qhov zoo tshaj plaws!

Tag nrho cov khoom tau raug kuaj xyuas thiab ntim rau hauv qhov zoo ua ntej xa!

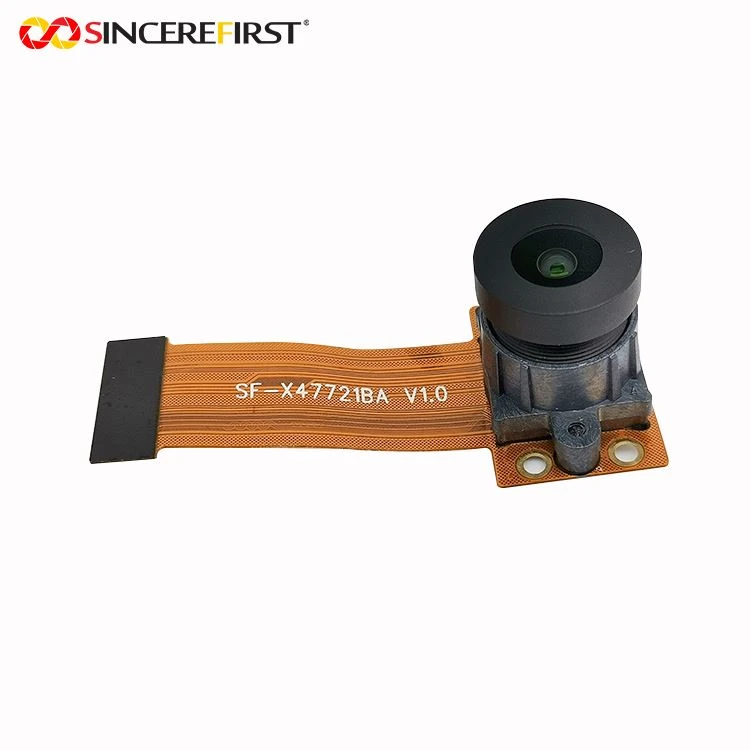

4k koob yees duab module: SF-X47721BA V1.0

SINCERE FIRST SF-X47721BA V1.0 khoom yog 4K lub koob yees duab module, tus qauv ntawm CMOS duab sensor yog 12MP RGB xim IMX477 los ntawm SONY, uas tuaj yeem txhawb nqa los ntawm lossis siv hauv Raspberry Pi board. IMX477-AACK-C yog kab pheeb ces kaum 7.857 hli (Hom 1/2.3), cov pixels zoo yog 4072 (H) × 3064 (V) kwv yees, tus ncej tus nqi tuaj yeem ncav cuag 4K2K @ 60 ncej / s (ib txwm), 1080p @ 240 ncej Piv rau 8 megapixels ntawm lub koob yees duab Raspberry Pi zoo tib yam, IMX477 sensor cameramodule. Txhawb nqa txog 12mp nrog kwv yees li 50% thaj tsam pixel loj dua, ua rau lub koob yees duab module muaj cov txiaj ntsig zoo dua.

4K lub koob yees duab module SF-X47721BA V1.0 nrog lub kaum sab xis yog nyob ib ncig ntawm HFOV 105 degrees, tsom ntau yam nyob ib puag ncig 1m mus rau infinity, F NO. yog 3.0, lub tsom ntev yog nyob ib ncig ntawm 3.65mm, lub lens yog M12 thiab ntses qhov muag lub kaum ntse ntse, qhov distortion yog hais txog<-30%, but the ready made module can be changed to other M12 lens with different angle. Ready made IMX477 sensor camera module is MIPI interface, 30pinout golden finger connector, the part number of the test mating connector is FH12-30S-0.5SH. This 4K camera module is with the large head size 22mm*15mm*17.0mm, the overall length of the camera module is about 50mm, FPC length is around 29m and width is about 13mm., there is also 0.3mm thickness on the back of camera module. The output image format is RGB output, if there are special requirement on the camera module, such as image direction, pinout, size etc, SINCERE FIRST can support OEM service, no MOQ. 1 year replacement, 10 years warranty. This 12MP 4K camera module with sensor IMX447 can be used in industrial and consumer scenarios, including security cameras or other applications that require higher levels of visual fidelity and more specialized optics.

Cim npe nrov: Tuam Tshoj 4k koob yees duab module lwm tus neeg, hoobkas
